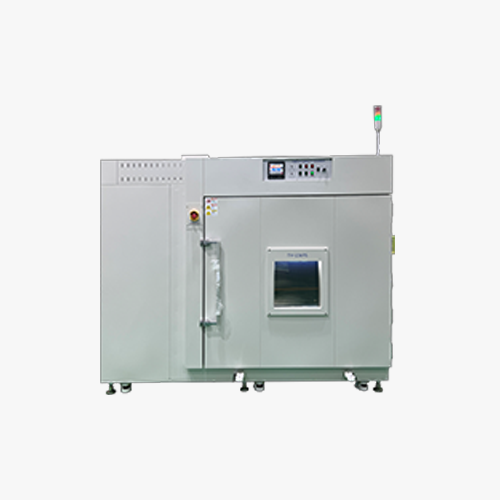

Temperature-Humidity Chamber / Large sized

TH-2369S

Purpose

Reliability testing, Simultaneous dehumidification and humidification are possible.

Feature

By utilizing the air flow of the sirocco fan, the temperature and humidity distribution are maintained across the large interior space of the chamber. The operation of the heater and refrigeration unit is finely adjusted to precisely control the temperature and humidity.
The control status of temperature and humidity is displayed in real-time on the LCD monitor, and the temperature and humidity data is saved on the SD card.
When an alarm occurs, the details are displayed on the LCD monitor, allowing for identification of the cause of the malfunction and appropriate action.
PID Auto-tuning controller
PID values can be adjusted according to the surrounding environment, allowing for precise temperature control. Digital LED or LCD(Option).
The limit control function for overload, overheating, and other conditions ensures maximum safety for both the equipment and the user.
The front door has a viewing window, allowing for internal monitoring, and the humidification water is supplied automatically, making it convenient to use.

Specification

Power	3P 380VAC, 60Hz About 23kW, 50A
Chamber size	1350x1350x1300 (WxDxH/mm)
External size	1750x2330x1840 (WxDxH/mm)
Chamber capacity	2369ℓ
Weight	1060kg
Main controller	LCD 5.7” touch screen type programmable controller
Main controller	Model No. : TEMI2500 (samwonTech Co., Ltd)
Temp. range	40℃ ~ 100℃
Humidity range	60℃ ~ 100℃ 10 ~ 50%
Humidity range	40℃ ~60℃ 20 ~ 50%
Temp. stability	A0.2℃
Temp. uniformity	A2.0℃
Humidity uniformity	A3.0%
Temp. sensor	PT100Ω
Humidity sensor	Electric sensor
Heater for temp.	SUS304 pipe fin type, 8kW
Heater for humidity	SUS304 pipe sheathed type, 5kW
Air-convection	Fan motor (60W) 4EA
Air-convection	Motor Speed Controller(Inverter 1HP)
Temp. Refrigerator	Cooler 5HP, R-404a
Internal material	SUS304
External material	SS41 with double painting & baked
Insulation	Polyurethane form(100t) & glass wool
Door	1 ea
Door packing	Silicon rubber
Door viewing window	Three fold vacuum and heater equipped glass
External lamp	24VDC, 12W, LED
