Temperature-Humidity Chamber / Large sized (Turn-Table type)

TH-2369S Purpose Thermo-hygrostat for drying cosmetic film

주요 구조부의 명칭

- Equipment front

1) Control panel: Controls equipment operation and temperature and humidity. 2) Turn-Table : The motor is located at the bottom, rotating the magazine inside the chamber. 3) Roller Guide: It serves as a guide when entering the bogie.

- Magazine / Bogie

1) Magazine: Place a jig for loading samples. 2) Bogie : Bogie for magazine transportation. 3) Magazine locking device (Magazine↔Bogie) : It prevents the magazine from being out during movement. 4) Bogie locking device (Bogie↔Main body) : It prevents the bogie from being out the main body. 5) Turn-Table locking device (Turn-Table↔Magazine) : It prevents the magazine from being out the Turn-Table.

- How to using Bogie : process to loading magazine

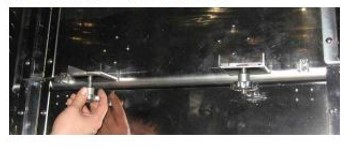

	1) Unscrew and separate the Turn-Table locking device.

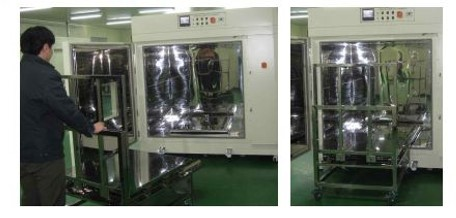

	2) Move the Bogie slowly to close the main body.
	3) Lock the Bogie locking device.
	4) Unlock the Magazine locking device.
	5) Slowly push the Magazine into top of the Turn-Table.

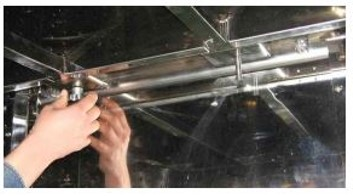

	6) If you lock the Turn-Table locking device, Magazine will be locked.
	7) Unlock the Bogie locking device and when you reverse the Bogie, Magazine loading is completed.
